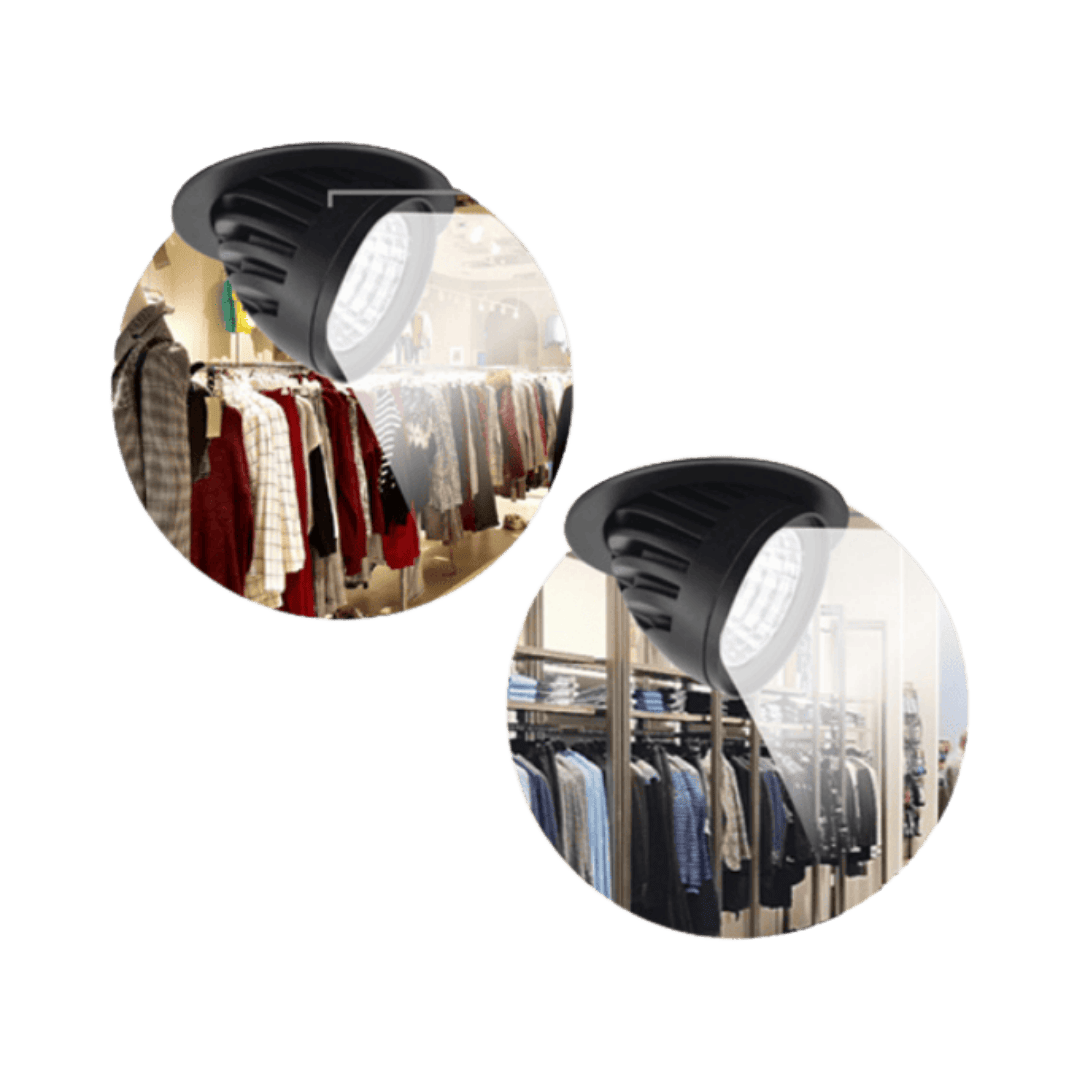

Asya-185T
Spot Clothing LED Lighting
| Body | Aluminum Body |
| Optic | Aluminum Reflector |
| LED | COB LED |
| Driver | Samsung, Osram |
| Supply Voltage | 220-240V/AC 50-60Hz |
| Operating Temperature | -20°C ~ +40°C |
| CRI | CRI > 90 |
| Protection Class | IP20 |
| Options |
Body Color Options: RAL9016 / RAL7021 Color Temperature: 2700K / 3000K / 4000K / 6500K DALI |
Technical Specifications
| Product Code | Power (W) | Luminaire Lumen (lm) | Color Temperature (K) | Luminaire Efficiency (lm/W) | Dimensions (LxWxH) | Quantity per Box | Box Dimensions (LxWxH) | Box Weight |
|---|---|---|---|---|---|---|---|---|
| LRS20 | 20 W | 1.800 | 2700/3000/4000/6500 | 90 lm/W | 185x185x146 mm | 18 | 290x500x580 mm | 16.29 kg |
| LRS20 | 30 W | 2.850 | 2700/3000/4000/6500 | 95 lm/W | 185x185x146 mm | 18 | 290x500x580 mm | 16.29 kg |
*3N reserves the right to make changes without prior notice.
*Technical data may vary by ±10%.
