Dora-118T

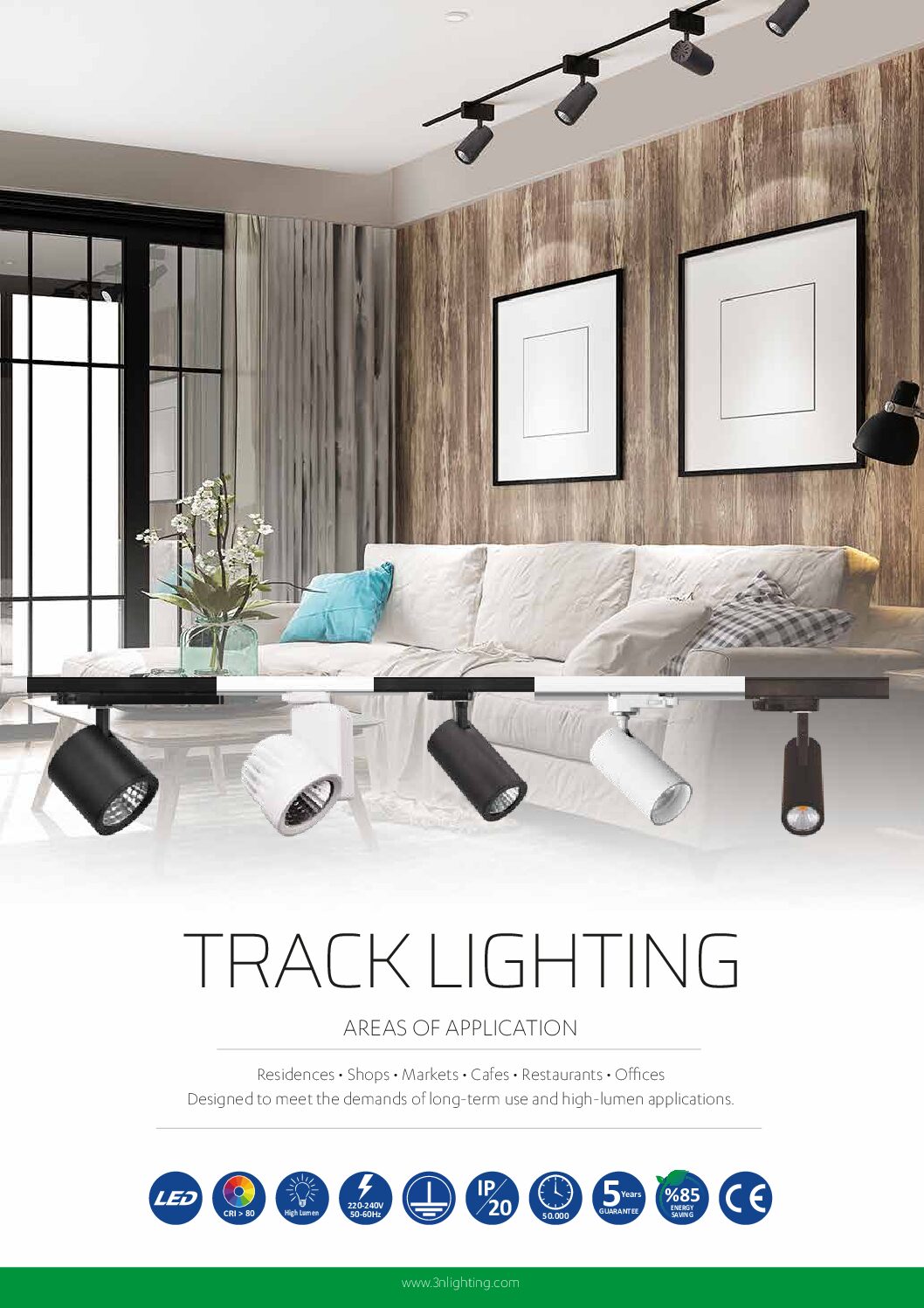

Track Spot Clothing LED Lighting
| Body | Aluminium Body / RAL9005 |
| Optical Cover | Aluminium Reflector |
| Driver | Osram, Tridonic, Philips |
| LED Chip | Samsung, Osram |
| Supply Voltage | 220-240V/AC 50-60Hz |
| Operating Temperature | -10°C ~ +40°C |
| CRI | CRI > 90 |
| Protection Class | IP20 |
| Options |
Body Colour Options: RAL9016 Mounting Options: Socket or Canopy with Electronic Ballast Colour Temperature: 2700K / 3000K / 4000K / 6500K DALI |
Technical Specifications
| Product Code | Power (W) | Luminaire Lumen (lm) | Color Temperature (K) | Luminaire Efficiency (lm/W) | Dimensions (LxWxH) | Quantity per Box | Box Dimensions (LxWxH) | Box Weight |
|---|---|---|---|---|---|---|---|---|
| LRS10 | 30 W | 2.850 | 2700/3000/4000/6500 | 95 lm/W | 158x118x167 mm | 12 | 290x500x580 mm | 15.48 kg |
| LRS10 | 35 W | 3.150 | 2700/3000/4000/6500 | 90 lm/W | 158x118x167 mm | 12 | 290x500x580 mm | 15.48 kg |
*3N reserves the right to make changes without prior notice.
*Technical data may vary by ±10%.
