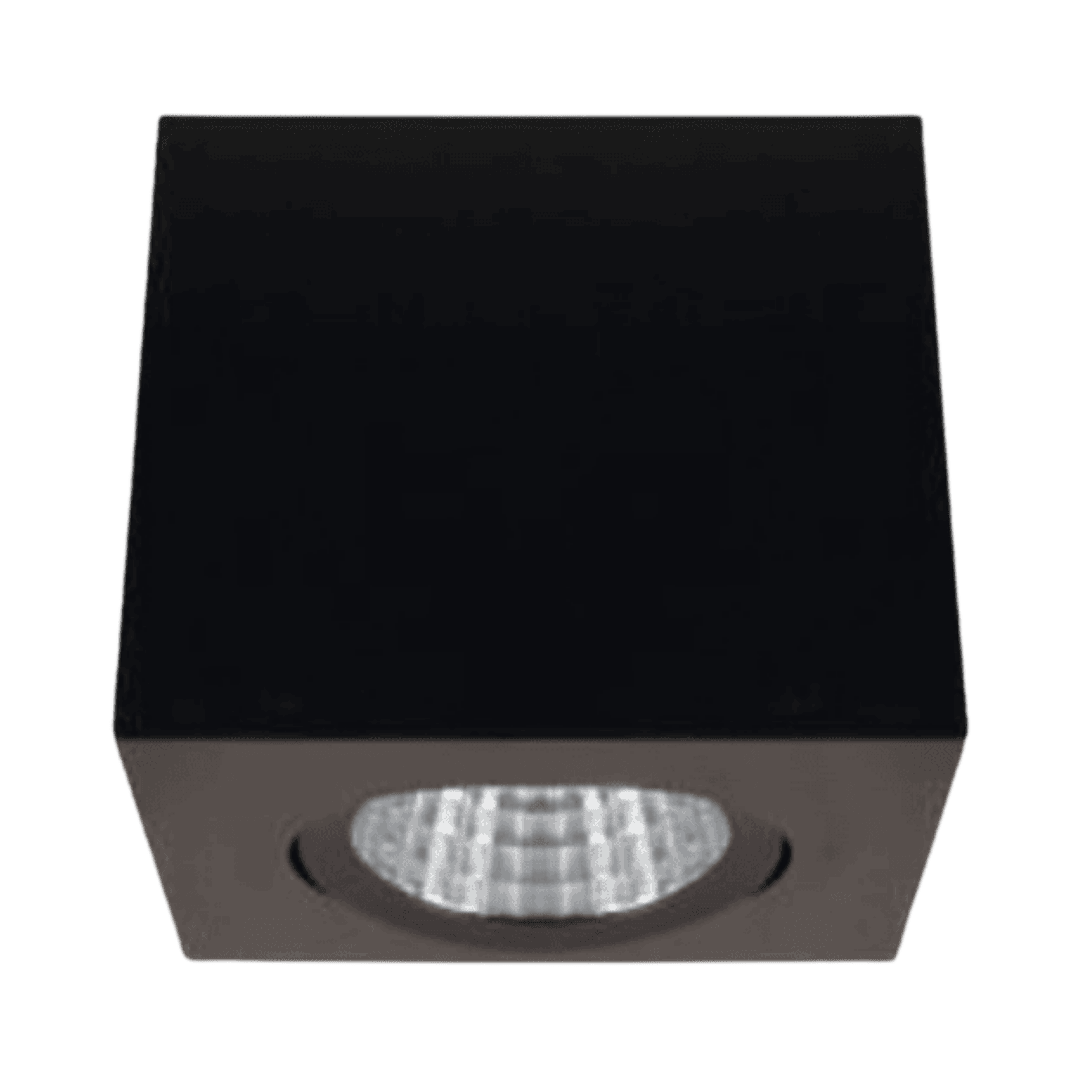

Mira-160
Spot LED Lighting
| Body | Aluminum Body / RAL9005 |
| Optical Cover | Aluminum Reflector |
| Driver | Osram, Tridonic, Philips |
| LED Chip | Samsung, Osram |
| Input Voltage | 220-240V/AC 50-60Hz |
| Operating Temperature | -10°C ~ +40°C |
| CRI | CRI > 90 |
| Protection Class | IP20 |
| Options |
Body Color Options: RAL9016 Application Options: Surface Mounted with Electronic Ballast Color Temperature: 2700K / 3000K / 4000K / 6500K DALI |










Technical Specifications
| Product Code | Power (W) | Fixture Lumen (lm) | Color Temperature (K) | Fixture Efficiency (lm/W) | Dimensions (LxWxH) | Pieces per Carton | Carton Size (LxWxH) | Carton Weight |
|---|---|---|---|---|---|---|---|---|
| LRS30 | 30 W | 3.000 | 2700/3000/4000/6500 | 100 lm/W | 160x160x150 mm | - | - | - |
| LRS30 | 40 W | 3.600 | 2700/3000/4000/6500 | 90 lm/W | 160x160x150 mm | - | - | - |
*3N reserves the right to make changes at its discretion without prior notice.
*Technical data have a ±10% tolerance.
